Description
RAM CLUTCHES CONCEPT 10.5 TWIN DISC CLUTCH KIT (METALLIC DISC)
08-23 Dodge Challenger w/ Manual Transmission (5.7L Hemi, 6.1L SRT8, 6.4L 392, 6.2L Hellcat / Demon)
50-2370N
Hydraulic Release Bearing Kit & Pedal Height Adjuster available separately!

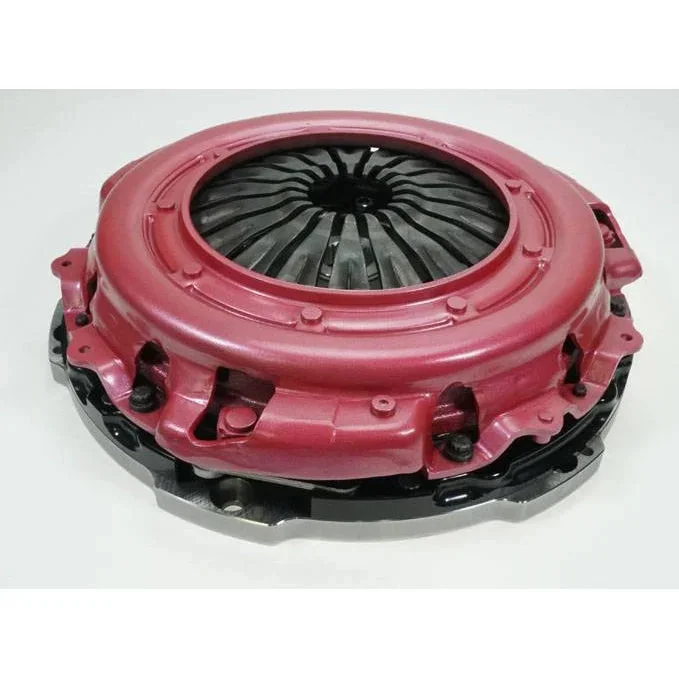

The RAM Concept 10.5 dual disc for Challenger features integral mounting segments that makes the unit compatible withfactory or RAM aftermarket flywheels. The pressure plate is 10.5 inches in diameter and applies 2400 pounds of clamploadto either organic or metallic friction discs, allowing for more surface area, holding power, and heat dissipation. Asprung hub top disc helps absorb initial shock on engagement while reducing gear rattle in the transmission under lightloads.
The strap driven floater plate is quiet operating when disengaged. Organic models for use up to 700 hp, metallicfor up to 900 hp. RAM produces custom triple disc models for higher power levels, contact the factory for more information.

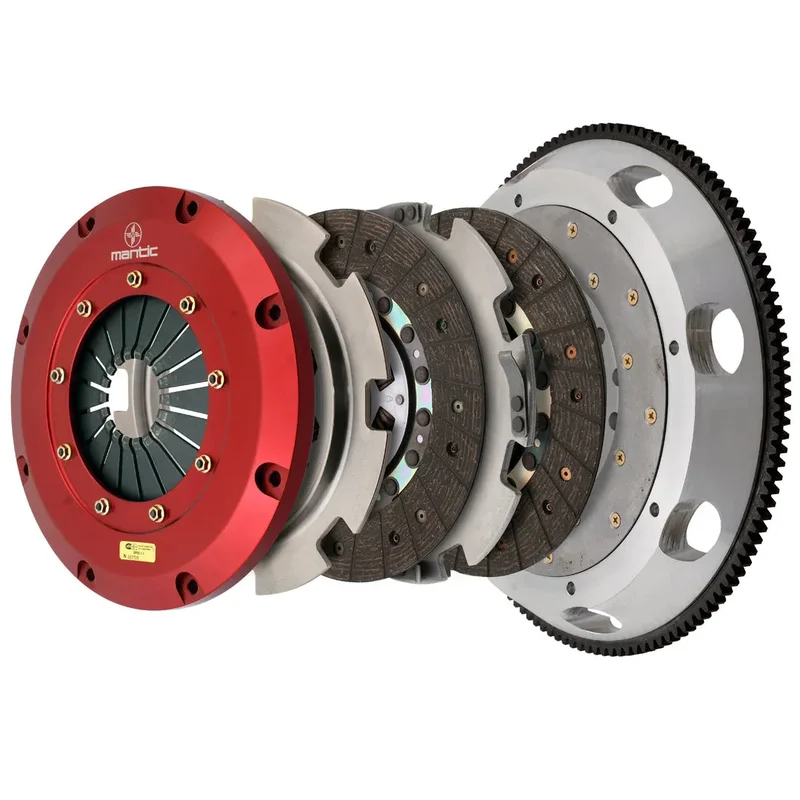

KIT FEATURES
- Fits OEM or RAM Aluminum Flywheel 2586
- Includes flywheel friction plate
- 900 series sprung top disc, solid center bottom disc
- Strap driven floater plate
- For applications up to 950 hp
- Made in the USA
OPTIONAL ALUMINUM FLYWHEEL
- Fits stock Challenger dual disc or Concept 10.5
- 20.5 lbs.
- Internal balance
- 130 tooth ring gear
- Meets SFI 1.1 specifications
- Made in the USA
OPTIONAL HYDRAULIC RELEASE BEARING KIT
- HD version features larger o-rings (compared to OEM)
- .800″ total travel
- 2.550″ face width
- 2.200″ minimum height
- Includes mounting hardware, adapters, bleeder kit
- Fits Challenger, Hellcat 2008-up
OPTIONAL PEDAL HEIGHT ADJUSTER KIT
- Allows adjustment of pedal height downward
- Includes mounting bracket
- Includes feed line kit and adapters
- Will not increase bearing travel
