Description

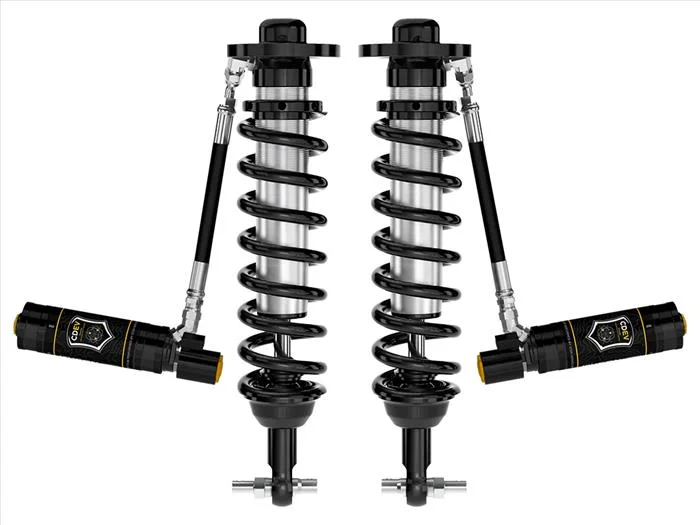

Upgrade your 2021-2023 Ford F-150 2WD truck with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks. These high-performance coilovers provide an impressive 0-3″ lift height adjustability, enabling you to fit larger and more aggressive wheel and tire combinations.
Designed specifically for your vehicle, ICON’s coilovers feature vehicle-specific shock length and valving, along with a robust 2.5″ shock body that offers increased piston surface area compared to stock components. This ensures maximum travel and superior ride quality on both on-road and off-road terrains.
The remote reservoirs significantly boost shock oil volume and enhance heat dissipation, preventing overheating and cavitation during intense use, which can lead to damper fade. Plus, the included ICON CDE Valve upgrade allows for easy electronic tuning of your ride from within the vehicle.
With the Compression Damping Electronic Valve (CDEV), you can fine-tune the damping force created by the shock when compressed, with an astonishing response time of less than 40ms. This adjustable valve is tailored for your specific terrain, ensuring the highest resolution for your driving experience.
When combined with ICON 2.5 Aluminum Series CDEV rear shock absorbers, your vehicle’s control will be perfectly balanced from front to rear, offering the ultimate driving experience for your Ford F-150 2WD.
Features & Benefits
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 0-3″ of lift height adjustment over stock
- 2.5″ diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON’s CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pins
- Fully rebuildable and re-tunable
Tech Info:
Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5 Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Application Notes:
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- Will not work with factory installed electronically controlled suspension.
- Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
- Only compatible with rear-wheel drive (2WD) models
- Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75″ over stock
- Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5″ over stock
- Not compatible with models equipped with BlueCruise
- Also requires installation of IIC kit (Part # 93500) and CDEV rear shocks (Part # 97720EP)
- An iOS operated device is required to run ICON Intelligent Control App 91818E
