Description
Dynatrac
Dynatrac EnduroSport® 4.5″ Suspension Lift Kit System 4 for Jeep Wrangler JK (2007–2018)
Dynatrac’s 4.5″ Jeep JK Suspension Lift Systems are engineered to strike the ideal balance between wheel travel, articulation, ground clearance, and precise on- and off-road handling. This system is built to handle desert whoops, technical trails, and long highway drives home with equal confidence.
System 4 delivers increased suspension travel and stability through a carefully tuned combination of dual-rate coil springs, adjustable control arms, optimized steering geometry, and rebuildable Dynatrac 2.5 EnduroSport shocks. The result is a JK that crawls with control, tracks straight at speed, and remains comfortable for daily driving.
Key Features & Benefits:
-
True 4.5-inch suspension lift
-
Dual-rate coil springs front and rear, guaranteed never to sag
-
Dynatrac 2.5 EnduroSport rebuildable and re-valvable shocks
-
Increased wheel travel and articulation over stock
-
High-steer flip kit for proper steering geometry without a drop pitman arm
-
Stainless steel high-steer taper adapter eliminates knuckle drilling
-
Adjustable front and rear track bars for precise axle centering
-
Adjustable front upper and rear lower control arms
-
Dual-rate bushings or PTFE-lined rod ends for controlled deflection, vibration isolation, and maximum articulation
-
100% bolt-on design and fully returnable to stock

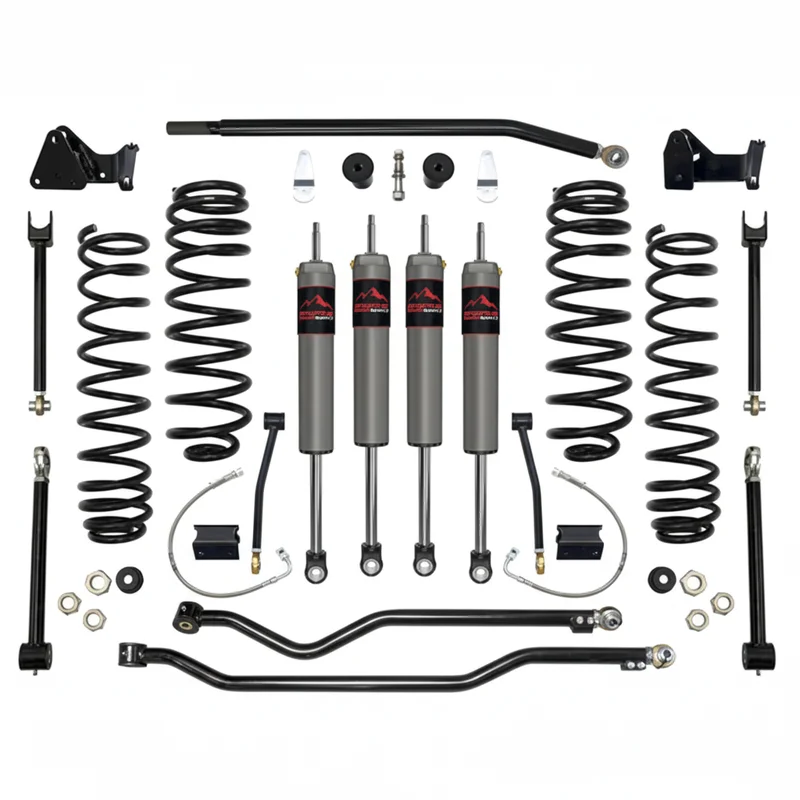

What’s Included:
-
Dual-rate front and rear coil springs
-
Dynatrac 2.5 EnduroSport shocks
-
High-steer components and flip kit
-
Front and rear adjustable track bars
-
Adjustable front upper and rear lower links
-
Track bar drop brackets
-
Bump stop spacers
-
Rear brake lines
-
Rear sway bar links
-
All required hardware
Tire & Wheel Fitment:
-
Clears 35″ tires with no modifications
-
37″ tires fit with aftermarket high-clearance fenders (test fitment recommended)
-
OEM wheels and tires: Compatible
-
Recommended aftermarket wheels: 17×8.5″ with 4.5″ backspacing / -6mm offset
Important Notes:
-
Advertised lift heights are based on vehicles with typical added weight such as bumpers and winches; stock-weight vehicles may sit slightly higher
-
Aftermarket front driveshaft required
-
Dynatrac PN DT922016 for 2007–2011
-
Dynatrac PN DT922014 for 2012–2018
-
-
Front driveshaft may contact some skid plates at full droop; trimming may be required
-
Rear alignment cam kit may be required (Dynatrac PN: DT922013)
-
2-door models may sit slightly taller than 4-door models but will remain level
-
Spanner wrench available for track bar adjustment (Dynatrac PN: DT9191014)
Vehicle Fitment:
-
2007–2018 Jeep Wrangler JK
-
2-door and 4-door models
SKU: DT JK45-1X5310-L4
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Visit www.P65Warnings.ca.gov for more information.
